Overview
The TFS tool supports for ShipConstructor software in modeling the 3D structure and finishing the production drawings.
The assembly drawing was automatically finished by the TFS tool
Benefit
- Decreasing time up to 75% for finishing the production drawings. Therefore, accelarating the technology design projects up to 25%.
- Reducing one or two persons and more for one technology design project. So, that is good solution of human resource.
- The highly automatic level with the minimum manipulation of the user will help the user fell more comfortable at work, therefore improving labor productivity.
- The TFS tool has many flexible functions which is suitable for multiple shipyards or ship design companies.
- The cost is relatively low compared to the value achieved.
The assembly and marking drawing was automatically finished by the TFS tool
Function
The TFS tool includes 04 modules: TFS MarineDrafting, TFS Structure, TFS Production and TFS Pipe.
- TFS MarineDrafting module supports in finishing the assembly and marking drawings created by the module MarineDrafting of ShipConstructor.
- TFS Structure module supports in modeling the 3D structure such as: Create multiple plates, create bracket quikly, create and transfer parts to the product hierarchy…

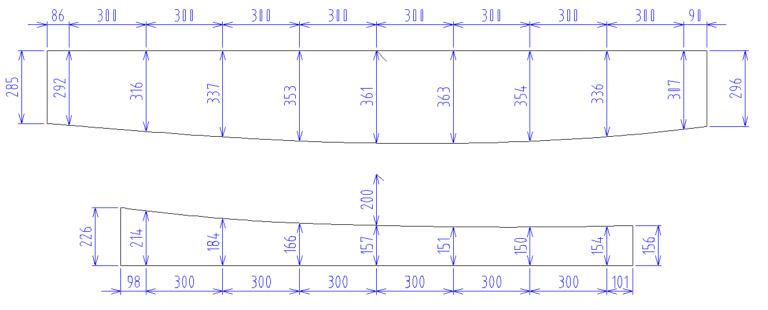

- TFS Production module supports in finishing the production drawings such as: The template drawing, the plate expanding drawing, the profile plot…
- TFS Pipe module supports in finishing the piping arrangment drawings.
The assembly and marking drawing was automatically finished by the module TFS MarineDrafting
The assembly and marking drawing was automatically finished by the module TFS MarineDrafting

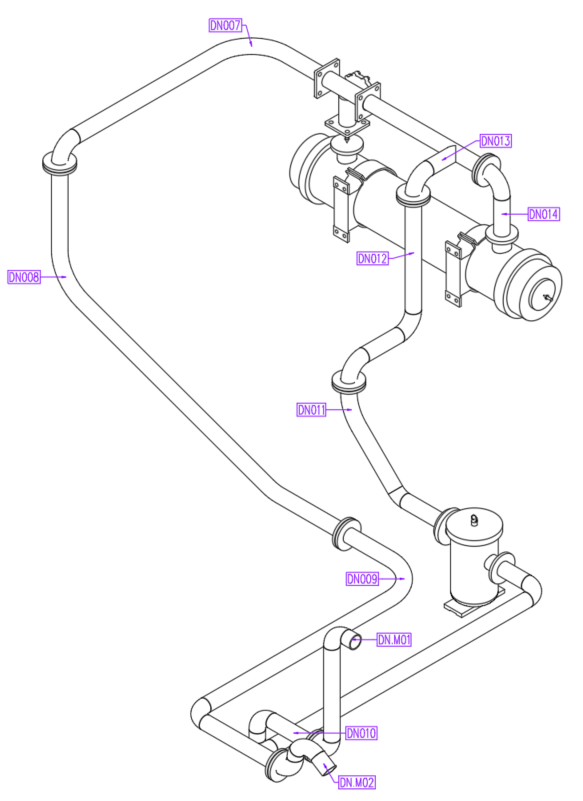

The pipe arrangement drawing was automatically finished by the module TFS Pipe
